High transmission height 15000mm LCF 6 plastic convey blower Power 7.5kw big air volume
Production information:
1) For convey blower , it’s especially suitable for material (PVC, foam plastics, plastic film) conveying&recycling system, and widely used in beverage machine, play a supporting role in green environmental protection system.
2) It is suitable for material transportation after film comminution,automatic feeding system of comminution unit.
Wind quatity:2500-7600m3/h.
3) Plastic convey blower can be suitable for long time use, high temperature resistance , if you have special request, we can customize temperature resistance.
4) The transmitted medium is air,and other non-hyperbaric air,non-explosive air with no harm to people.The air flow do not contain any adhesive material ,such as dust and grain.
Features:
1) Plastic convey blower has simple structure,reducing weight greatly and achieving the goal of lightweight.
2) We will test the product performance before shipping.
3) The operation is reliable and stable.Besides,the convey blower has high efficiency and good adaptability to working conditions.
4) Special air damper, can adjust the airflow, easy to operate.Special blade design ,double opening without blocking.
5) The air inlet and outlet of the fan are designed independently,optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.
6) It is made of stainless steel.
7) Large materials pass through the plastic convey blower unimpedely.It has long service life.
8) Realize automation and intelligence,save manpwer and money,economical and practical.
Specifications:
| Model | Power(kw) | Wind quantituy(m3/h) | Full-press(pa) | Weight(kg) | Noise(dB) | Distance(mm) |
| LCF-1 | 1.5 | 2500 | 1650 | 50 | ≤75 | 5000 |
| LCF-2 | 2.2 | 3000 | 2100 | 55 | ≤78 | 6000 |
| LCF-3 | 3 | 3500 | 2200 | 70 | ≤80 | 7500 |
| LCF-4 | 4 | 4200 | 2250 | 90 | ≤82 | 9000 |
| LCF-5 | 5.5 | 5500 | 2500 | 125 | ≤85 | 12000 |
| LCF-6 | 7.5 | 7600 | 2650 | 170 | ≤85 | 15000 |

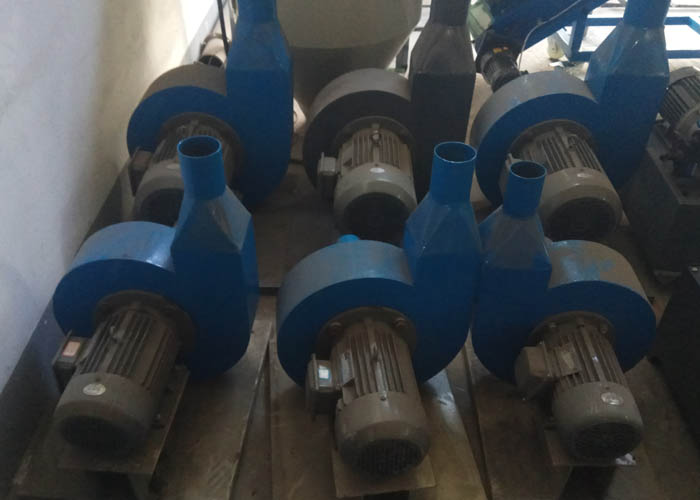

Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent.
Competitive advantages:
1. Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2. The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3. 3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4. Promise:We will provide technical support for all lifetime with over 20 years experiences.
