Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm

Product Categories

NINGBO LVHUA PLASTIC & RUBBER MACHINERY INDUSTRIAL TRADE CO.,LTD.

Contact Now

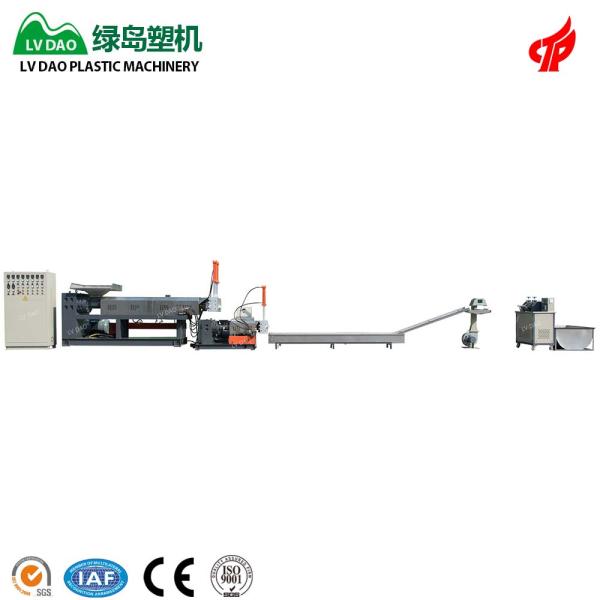

Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm

Name: Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 170 3300mm
Brand: Lvdao
Price: 31000 USD

Buy cheap Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm product

Brand Name : Lvdao

Model Number : LDT-SJP-120-110

Certification : CE, IAF, SGS, ISO9001:2008

Place of Origin : China

MOQ : 1 set

Price : $31000-31800 USD/set

Payment Terms : T/T

Supply Ability : 300 sets/ per year

Delivery Time : 30-40 work days

Packaging Details : film packaging

Condition : New

Type : Pelletizer machine line

Capacity : 180-200kg/h

Band Name : Lvdao

Material : PA6, PA66

Voltage : Customized

Motor Power : 45kw(main motor)

Dimension : APPROX. 15*3*2.5(L*W*H)

Weight : APPROX. 5000kg

Warranty : 1 year

After-sales service : engineer oversea

Usage : plastic pelletizing

Final product : PA pellets

Motor Band : WN

Colour : Customer depend

Stage type : Two stage

Screw size : 120*170*3300mm

Advantage : Long service time

Automatic grade : Semi-Automatic

Contact Now

Customized Waster PA Carpet Plastic Pelletizer Machine Line 120 * 170 * 3300mm

Our machine function is pelleting recycling plasitc. Sorting and grouping plastic materials according to resin type is an important first step in the recycling process because contamination can render a batch of material un-reusable. The most frequently recycled resins, Polyamide (Nylon, PA), must be carefully separated from one another in order to enable further processing. Contaminants within each type of plastic must also be removed from the base resin to ensure stock purity.

Plastic Polyamide (Nylon, PA) Pelletizer Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on PA ranulation.
The granules that the LVDAO particle cutting machine produce are uniform and beautiful.

Advantages:
1) noodle water-cooling cutting , ensures good shape.
2) fhaving 2 filtrations. ensuring the purity of final pellets
3) Extrude more evenly, having more stable output and better pellets
4) CE, IAF, SGS, IOS9001:2008 Certificate
5) Long service life
6) Customized
7) Engineers available overseas

Specifications

Feeding	Hand feeding/ feeding machine system
Extruder	Single screw, Two stage extrusion
Cutting Type	Strand (noodle) type pelletizing
Cooling Type	Water cooling
Product	Plastic pellets/granules
Material Type	PA scrap
Machine Components	Cabinet,extruder,water cooling tank,blower,cutter,silo
Output range	100kg~ 450 kg/h
Screw Diameter	80~150mm (customized)
Screw L/D	23:1 (customized)
Screw Material	38CrMoAL
Voltage	Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Delivery Time	50days for customized machine.
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm

Pelletizing reclaimed plastic is the final step in most recycling processes. Converting post-consumer plastic into pellets allows for easier distribution and remanufacturing, and ultimately benefits the speed and effectiveness of reintroducing recycled plastic into industrial manufacturing. After sorting, drawing, separating, and drying the reclaimed material, the flake stock is ready to be extruded into pellets.

Plastic recycling pelletizer series depends on plastic itself, which plastic are you recycling , different plastics have different application.If your want know more, feel free to contact US
